Lieu d'origine:
Chine
Nom de marque:
ANGES
Numéro de modèle:
60hp
Shenzhen Anges Machinery Co., Ltd

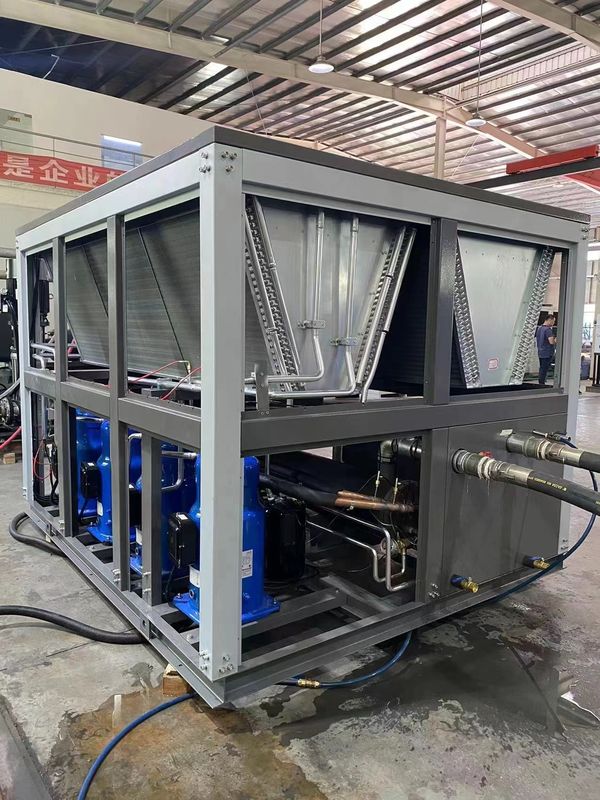

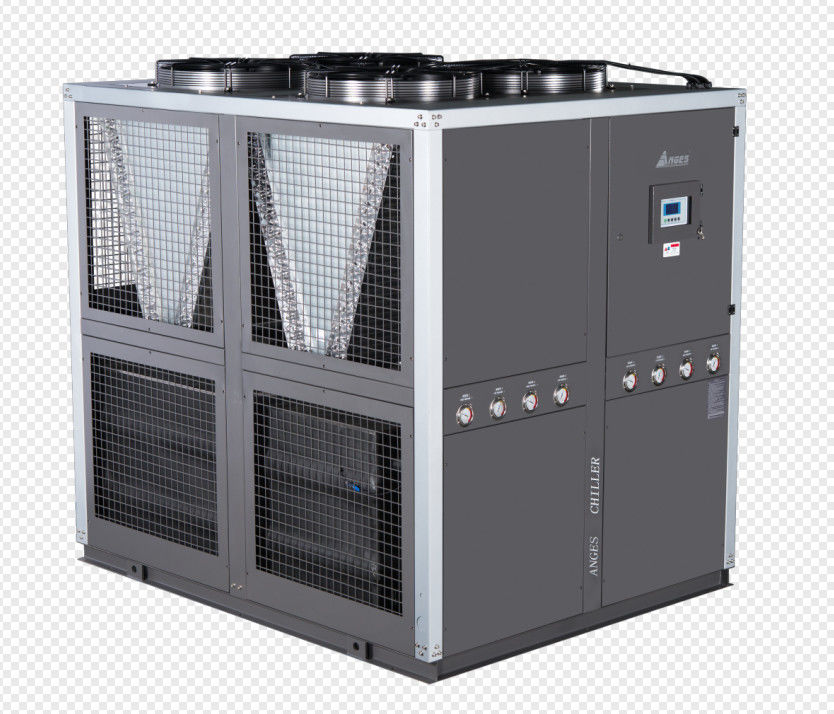

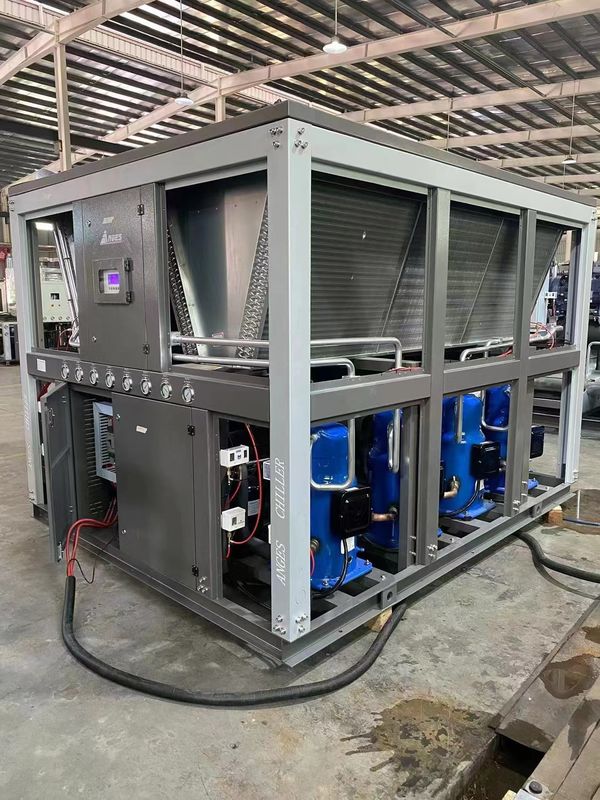

Technical Parameter of Air-cooled scrolled Type Chiller
|
Model Item |
ACK-60(F) | |
| Nominal cooling capacity | Kcal/h | 152048 |
| kw | 184.8 | |
| Input power | kw | 57.48 |
| Power supply | 3PH~220V/60HZ | |
| Refrigerant | Type | R22 |
| Type of control | Expansion valve | |
| Compressor | Type | Hermetic scroll type |
| Power (kw) | 49.8 | |
| Condenser | Type |
Finned copper tube+low noise outer rotor fan |
| Power(kw) | 3.68 | |
| Cooling air flow(m3 /h) | 60000 | |
| Evaporator | type | Shell and tube |
| Chilled water flow(m3 /h) | 31.86 | |
| Tank volume(L) | 345 | |
| Inlet/outlet pipe chiller(inch) | 3 | |
| Water pump | Power(kw) | 4 |
| Lift(m) | 23 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| Net weight | kg | 1850 |
| Dimension | mm | 2700*2200*2050 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to run the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above dimensions or parameters without further notice.
Configuration table for Air-cooled scrolled Type Chiller
| Item | Main Parts | Brand | Origin |
| 1 | Compressor | Danfoss | Denmark |
| 2 | Condenser | ANGES | China |
| 3 | Evaporator | ANGES | China |
| 4 | Drying Filter | Emerson | USA |
| 5 | Controller PCB | Punp | China |
| 6 | Electric Components | Schneider | France |
| 7 | Pressure Controller | Fensheng | China |
| 8 | Oil Pressure Gauge | Jiunai | China |
| 9 | Water Pump | Minamoto | China |
| 10 | Fan | MAER | China |
